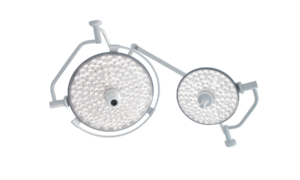

Lumax 15 / 25 / 1M
Operating light
The Lumax 15 / 25 / 1M offers high-intensity, adjustable lighting with deep illumination and precise color rendering, ideal for complex surgeries. Its advanced design minimizes heat in the surgical area and includes endoscopy-assisted lighting for better visual clarity. Built for both ceiling and mobile configurations, it ensures flexibility, hygiene, and long-term reliability in any OR setup.
Multi-lens optical focusing technology
- Multi-lens light source design with more than 110 light sources
- Light source area up to 4000 cm²
- Excellent shadowless effect
Powerful Features
- Lighting Compensation
- Spot Diameter
- Cavity Lighting
- Surgical Modes
- Endoskopieunterstützte Beleuchtung
- Rendering Index
- Adjustable Color Temperature
- Antibacterial Coating
- Digital Solutions for OR
When the surgeon‘s head blocks the light, the light sources of this area will be turned off automatically, while the other area will enhance the lighting as compensation.
It not only gives more comfort to surgeons during operation, but also greatly reduces the impact of the surgeon‘s head on the surgical field lighting.
Stufenlose Einstellung des Lichtfelddurchmessers von 160 mm bis 500 mm. Neben der Allgemeinchirurgie erfüllt das System auch die Anforderungen an großflächige Débridement-Eingriffe. Die Spot- und Flutlichtanteile sind gut integriert und erzeugen einen weichen Übergangsbereich am Rand des Spotlichts.
|
With a lighting depth of up to 1500 mm, surgical procedures may be performed in a greater lighting range without often adjusting the surgical lamp‘s height owing to insufficient brightness. |
Es stehen drei voreingestellte chirurgische Lichtmodi zur Verfügung (Wirbelsäulen-, Herz- und Urologische Chirurgie). Darüber hinaus können Chirurgen individuelle Einstellungen je nach Eingriff festlegen und speichern, um sie bei Bedarf jederzeit wieder abzurufen.
Die endoskopischen Zusatzleuchten helfen, das Rot im Sichtfeld zu regenerieren, die Empfindlichkeit der Augen gegenüber Rottönen zu erhalten und die Belastung des Sehvermögens durch ein dauerhaft rötliches Operationsfeld zu reduzieren.
Color rendering index up to 98 helps surgeons to distinguish the color and layer of tissues clearly and accurately.
Color temperature is from 3,000 K to 5,700 K and it can be adjusted according to different surgical sites to achieve the ideal contrast, so that doctors can distinguish the subtle difference of tissues.
With nano silver antibacterial coating, it is effective against E.coli and S.aureus, and the antibacterial rate is up to 99.9 %.
The central or external HD camera can be installed together with the monitor, various video transmission interfaces can be provided and access to the digital operating room system of the hospital for video transmission and storage, which is convenient for remote consultation and scientific research and teaching.
Lighting Compensation
When the surgeon‘s head blocks the light, the light sources of this area will be turned off automatically, while the other area will enhance the lighting as compensation.
It not only gives more comfort to surgeons during operation, but also greatly reduces the impact of the surgeon‘s head on the surgical field lighting.
Spot Diameter
Stufenlose Einstellung des Lichtfelddurchmessers von 160 mm bis 500 mm. Neben der Allgemeinchirurgie erfüllt das System auch die Anforderungen an großflächige Débridement-Eingriffe. Die Spot- und Flutlichtanteile sind gut integriert und erzeugen einen weichen Übergangsbereich am Rand des Spotlichts.
Cavity Lighting
|
With a lighting depth of up to 1500 mm, surgical procedures may be performed in a greater lighting range without often adjusting the surgical lamp‘s height owing to insufficient brightness. |
Surgical Modes
There are 3 preset surgical lighting modes (spinal surgery, cardiac surgery, urological surgery). Surgeons can also set thier parameters according to different surgeries, and save it to call whenever needed again.
Endoskopieunterstützte Beleuchtung
Die endoskopischen Zusatzleuchten helfen, das Rot im Sichtfeld zu regenerieren, die Empfindlichkeit der Augen gegenüber Rottönen zu erhalten und die Belastung des Sehvermögens durch ein dauerhaft rötliches Operationsfeld zu reduzieren.
Rendering Index
Color rendering index up to 98 helps surgeons to distinguish the color and layer of tissues clearly and accurately.
Adjustable Color Temperature
Color temperature is from 3,000 K to 5,700 K and it can be adjusted according to different surgical sites to achieve the ideal contrast, so that doctors can distinguish the subtle difference of tissues.
Antibacterial Coating
With nano silver antibacterial coating, it is effective against E.coli and S.aureus, and the antibacterial rate is up to 99.9 %.
Digital Solutions for OR
The central or external HD camera can be installed together with the monitor, various video transmission interfaces can be provided and access to the digital operating room system of the hospital for video transmission and storage, which is convenient for remote consultation and scientific research and teaching.
Technical Specifications
| Lumax 15/25 | Lumax 1M | |
|---|---|---|
| Mounting |
|
|
| Optional functions |
|
|
