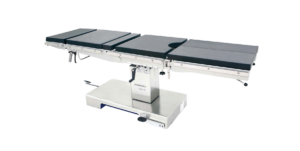

    Onex 201 manual surgery table

    The Onex 201 is a manual surgical table that has a load capacity of 297 kg. The table can easily be set up and positioned to meet all kinds of surgical operation needs.

    Specifications

    • Max. table length including head plate & leg plates 2020mm
    • Max. table width (without side rails) 520mm
    • Lowest table level in standard version 680mm
    • Highest table level in standard version 940mm
    • Trendelenburg/Reverse 20°/20°
    • Lateral Tilt (left/right) 20°/20°
    • Head Plate (up/down) 30°/45°
    • Back Plate (up/down) 75°/25°
    • Leg Plate (down/split) 5°/90°/180°
    • Load capacity max. 297kg

    Features

    • Realizing all kinds of surgical positioning required clinically, with simple manual control
    • Integrated kidney elevator 0~110 mm height adjustment
    • Floor locking system activate with a single pedal.
    • Double joint head section
    • Optional 300 mm Longitudinal movement
    • Multiple configurable leg sections
    • Most of the movement assisted with gas spring system

    Accessories

    • Headrest system
    • Crossbar adaptor
    • Arm/Hand surgery table
    • Facial/Occipital head rest
    • Orthopedic extension device
    • Wrist support system
    • X-ray cassette tray
    • Body restraint strap
    • Arm restraint strap
    • Leg restraint strap
    • L-shaped Anesthesia Screen
    • L-shaped Anesthesia Screen with 2 wings
    • Easy arm board
    • Arm board with ball-joint
    • Lateral Arm board
    • Leg support padded
    • Lateral support padded
    • Shoulder Support padded
    • Foot-rest padded
    • Radial Accessory clamp
    • Accessory clamp
    • Infusion Stand
    • Instrument tray
    • Drain pan
