Lumax 3 & 5 / 3M
Operating light
Lumax 3 & 5 are surgical lamps with LED technology. With constant attention to the evolution of technology and clinical needs, Lumax 3 & 5 are born to meet the needs of its user granting optimal performances, reliability and visual comfort. They deliver excellent light quality. The special optics of its LEDs generate shadowless, clear and homogeneous light assuring visual comfort and best working conditions for the surgeon and the medical staff.
Features of Lumax 3 & 5
- Clearness: The adjustable color temperature, improved color rendering index, and wide-range light spot ensure a clearer visualization of the surgical field.
- Convenience: The incorporation of an integrated control panel and multifunctional handle facilitates the adjustment of surgical light parameters.
- Durability: The 70,000-hour service life of LEDs proves the cost-effectiveness of Lumax 3 & 5.
- Sterilization: Optimized shape and antimicrobial coating meet the needs of sterilization management.
- Safety: Modularized circuit management ensures each part works independently, which provides a strong backup for consistent illumination and ensures patients‘ safety.
- Adaptability: High-definition video solutions meet the needs of modern digital ORs.
Powerful Features
Lumax 5 has 160 LEDs. Lumax 3 has 80 LEDs. This layout ensures an even and full illumination with no dim spots. The multi-lens structure delivers light spot with a diameter up to 360 mm and a depth of illumination up to 1950 mm. Tunable color temperature guarantees a clearer view of the surgical site during surgical procedures. Enhanced color rendering index assists the surgeon to distinguish the different blood vessels during surgery. Wide-range light spot makes it suitable for varial size and shape incisions and also provides an effective way to reduce the glare from the area around the surgical field and prevent surgeons from eye strain.
-
160 mm
-
360 mm
With a patented adjustment electronic program, Lumax 3 & 5 shows consistent performance. The integrated control panel with an advanced microprocessor allows 10-level adjustment of the parameters. The multifunctional handle provides another convenient way to adjust brightness, color temperature, and spot size.
The aluminum alloy shell of the light head provides good heat dissipation for surgical lamps which ensures long-term stable operation. With a service life of up to 70,000 hours, the Lumax 3 & 5 is a cost-effective surgical lamp of choice in the OR.
-

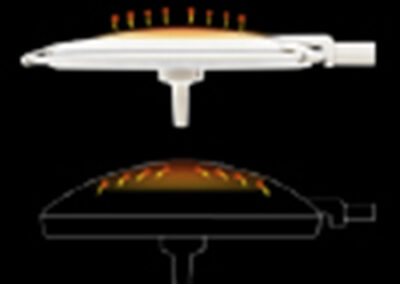

Metal / non-metal shell for heat dissipation
The Lumax 5 model is equipped with 160 LEDs, organized into 20 distinct modules, while the Lumax 3 features 80 LEDs distributed across 10 separate modules. The modular circuit management system guarantees that each component operates independently, thereby providing robust support for consistent illumination and ensuring patient safety.

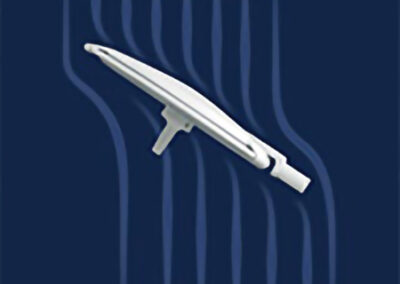

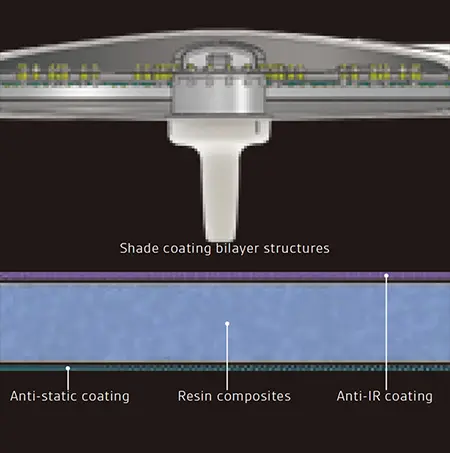

The ultra-thin and streamlined light head contributes to low airflow resistance. It keeps air circulating above the surgical wound area and reduces the risk of surgical site infection caused by falling airborne bacteria. The anti-static coating of the light screen prevents dust and floating particles from leaving on the surface, which makes it easy to clean. The sterilizable handle is capable of withstanding sterilization at a temperature of 134 °C.
The Lumax 3 & 5 also offers high-definition video solutions for recording surgical procedures, transmitting videos for remote consultations, and providing video-based teaching. It effectively caters to the requirements of modern digital operating rooms.
-
2,000,000 pixels camera system (Optional)
-
High definition screen (Optional)
Clearness
Lumax 5 has 160 LEDs. Lumax 3 has 80 LEDs. This layout ensures an even and full illumination with no dim spots. The multi-lens structure delivers light spot with a diameter up to 360 mm and a depth of illumination up to 1950 mm. Tunable color temperature guarantees a clearer view of the surgical site during surgical procedures. Enhanced color rendering index assists the surgeon to distinguish the different blood vessels during surgery. Wide-range light spot makes it suitable for varial size and shape incisions and also provides an effective way to reduce the glare from the area around the surgical field and prevent surgeons from eye strain.
-
160 mm
-
360 mm
Convenience
With a patented adjustment electronic program, Lumax 3 & 5 shows consistent performance. The integrated control panel with an advanced microprocessor allows 10-level adjustment of the parameters. The multifunctional handle provides another convenient way to adjust brightness, color temperature, and spot size.
Durability
The aluminum alloy shell of the light head provides good heat dissipation for surgical lamps which ensures long-term stable operation. With a service life of up to 70,000 hours, the Lumax 3 & 5 is a cost-effective surgical lamp of choice in the OR.
-
Metal / non-metal shell for heat dissipation
Safety
The Lumax 5 model is equipped with 160 LEDs, organized into 20 distinct modules, while the Lumax 3 features 80 LEDs distributed across 10 separate modules. The modular circuit management system guarantees that each component operates independently, thereby providing robust support for consistent illumination and ensuring patient safety.
Sterilization
The ultra-thin and streamlined light head contributes to low airflow resistance. It keeps air circulating above the surgical wound area and reduces the risk of surgical site infection caused by falling airborne bacteria. The anti-static coating of the light screen prevents dust and floating particles from leaving on the surface, which makes it easy to clean. The sterilizable handle is capable of withstanding sterilization at a temperature of 134 °C.
Adaptability
The Lumax 3 & 5 also offers high-definition video solutions for recording surgical procedures, transmitting videos for remote consultations, and providing video-based teaching. It effectively caters to the requirements of modern digital operating rooms.
-
2,000,000 pixels camera system (Optional)
-
High definition screen (Optional)
Features of Lumax 3M
- Performance: Lumax 3M contains 80 LEDs. The way the LEDs are arranged guarantees complete. The multi-LED construction produces a light spot up to 200 mm in diameter and 1,650 mm in depth of illumination.
- Quality: Made of Polysulfone, the detachable and sterilizable handle may be autoclaved at temperatures up to 134 °C.
Safety: Individual power supply and battery back-up status indication panel. - Clearness: During surgery, the improved color rendering index aids surgeons in differentiating between various blood vessels and reduces the impact of glare. Large circular light spots are suitable for different surgical incisions.
- Durability: The aluminum alloy shell of the light head provides good heat dissipation for surgical lamps which ensures the long service life of the operation light. The LEDs have a long service life up to 70,000 hours, which proves that Lumax 3M is a cost-effective choice for operating rooms.
- Convenience: Stable cart system with castors lock function, built-in charger adapter.
Technical specification
| Model | Lumax 5 | Lumax 3 | Lumax 3M (mobile) |
|---|---|---|---|
| Diameter of lights | 700 mm | 500 mm | 500 mm |
| Illumination at 1 m | 40,000–160,000 lx | 40,000–160,000 lx | 40,000–160,000 lx |
| Color temperature | Standard: 4500 K Optional: 3000–6000 K |
Standard: 4500 K Optional: 3000–6000 K |
Standard: 4300 K Optional: 3000–6000 K |
| Light field diameter (D10) | Standard: 360 mm Optional: 160–360 mm |
Standard: 260 mm Optional: 160–260 mm |
Standard: 200 mm Optional: 160–260 mm |
| Color rendering Index (Ra) | 98 | 98 | 98 |
| Color rendering Index (R9) | 98 | 98 | 98 |
| Color rendering Index (R13) | 98 | 98 | 98 |
| Color rendering Index (R15) | 98 | 98 | 98 |
| Depth of illumination (L1+L2, 20%) | 1,950 ± 25 % | 1,650 ± 25 % | 1,650 ± 25 % |
| Depth of illumination (L1+L2, 60%) | 1,050 ± 25 % | 850 ± 25 % | 850 ± 25 % |
| Number of LED bulbs | 160 | 80 | 80 |
| Service life of LED bulbs (hours) | ≥70,000 hr | ≥70,000 hr | ≥70,000 hr |
| Dimming range | 10 level (25 %–100 %) | 10 level (25 %–100 %) | 10 level (25 %–100 %) |
| Minimum mounting height | 2,800 mm | 2,800 mm | – |
